Scale longitudinale GN 299
For Standard Stroke Lengths l1 of the Linear Actuators GN 291
TypeA
Scale values ascending to the left
TypeB
Scale values ascending to the right

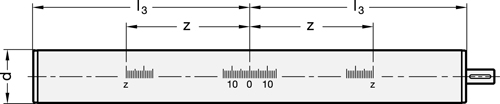

TypeC
Scale values decreasing towards middle

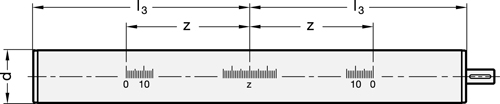

TypeD
Scale values ascending towards middle
-
